Industrial Grade Drum Belt Thickening And Dewatering Machine Sludge Treatment Equipment

Name: Industrial Grade Drum Belt Thickening And Dewatering Machine Sludge Treatment Equipment
Brand: ZTIC
Price: 1 USD

China Industrial Grade Drum Belt Thickening And Dewatering Machine Sludge Treatment Equipment wholesale

Brand Name : ZTIC

Model Number : Cement Plant Equipments

Certification : ISO\CE

Place of Origin : Henan China

MOQ : 1set

Price : negotiated

Packaging Details : Standard packing or according to customer's requirement

Belt Width(mm) : 750-3000

Cake Moisture(%) : 63-84.5

Dry Solid(kg/hr) : 110-225

Power(HP) : 1.5-2.2

weight(kg) : 2570-6220

Port : Qingdao China

Warranty : 12 months

Condition : New

Appearance reference size(mm) : 4250*1630*2100

Contact Now

Industrial Grade Drum Belt Thickening And Dewatering Machine Sludge Treatment Equipment

Design Features

The structure has a large stiffness, a steady operation and low noise.
It is equipped with advanced concentration preprocessing equipment to flocculate slurry preferably and decrease running cost.
Gravity dewatering zone is equipped with advanced distributing device to scatter material uniformly and extend filter cloth's service life.
It has a long wedge-shaped dewatering zone and gravity dewatering zone. It can dehydrate material sufficiently and make sure that the material will not overflow.
Dewatering rollers are arranged in a scientific way. Filtrate is respectively discharged from gravity zone, wedge-shaped zone and squeezing zone without disturbing each other. Dewatering rollers has larger diameter and better dewatering effect, they endowed belt f ilter with high treatment capacity, high efficiency and energy saving.

Product Introduction
This device integrates drum concentration and belt filtration technology, and achieves the dehydration process through flocculant mixing reaction, drum pre dehydration screening, and double-layer filter belt filtration. Adopting an infinitely variable speed control system to regulate production and dryness, equipped with automatic correction, filter cloth tensioning, and liquid level control functions, the main body is made of 304 stainless steel structure, which combines corrosion resistance and anti leakage characteristics. The built-in intelligent cleaning system can optimize water consumption, with core components including imported German technology accessories, LG electronic control system, and Omron correction device. It can operate without the need for a concentration tank and has the advantages of small footprint, high mud cake solids content, and easy maintenance.

Product Parameters

Model	Belt Width(mm)	Capacity(m³/hr)(Inlet Concentration)(s.s.1.5-2.5%)	Dry Solid(kg/hr)	Cake Moisture(%)	Power(HP)	Appearance reference size(mm)			Weight(kg)
Model	Belt Width(mm)	Capacity(m³/hr)(Inlet Concentration)(s.s.1.5-2.5%)	Dry Solid(kg/hr)	Cake Moisture(%)	Power(HP)	L	W	H	Weight(kg)
DY750	750	6-9	110-225	63-84.5	1.5	4250	1630	2100	2570
DY1000	1000	8-12	150-300		1.5	4250	1880	2100	2920
DY1500	1500	12-18	225-450		1.5	4250	2380	2100	3590
DY2000	2000	16-24	300-600		2.2	4250	2920	2100	4490
DY2500	2500	20-30	375-750		2.2	4250	3420	2100	5520
DY3000	3000	28-38	420-950		2.2	4250	3920	2100	6220

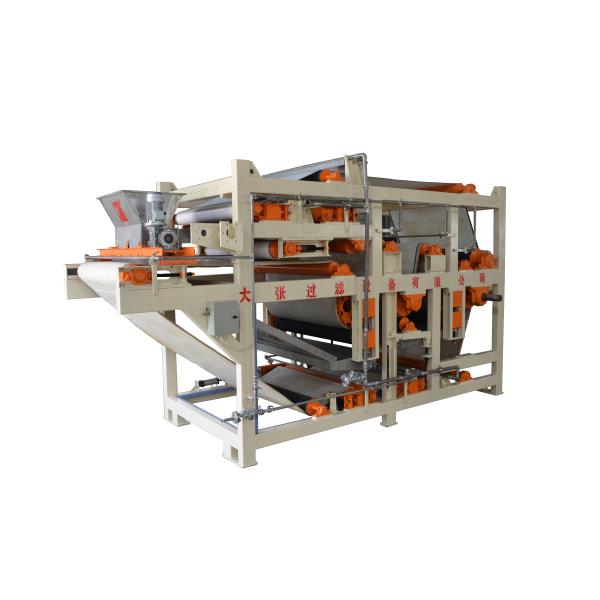

Product Display

Industrial Grade Drum Belt Thickening And Dewatering Machine Sludge Treatment Equipment
